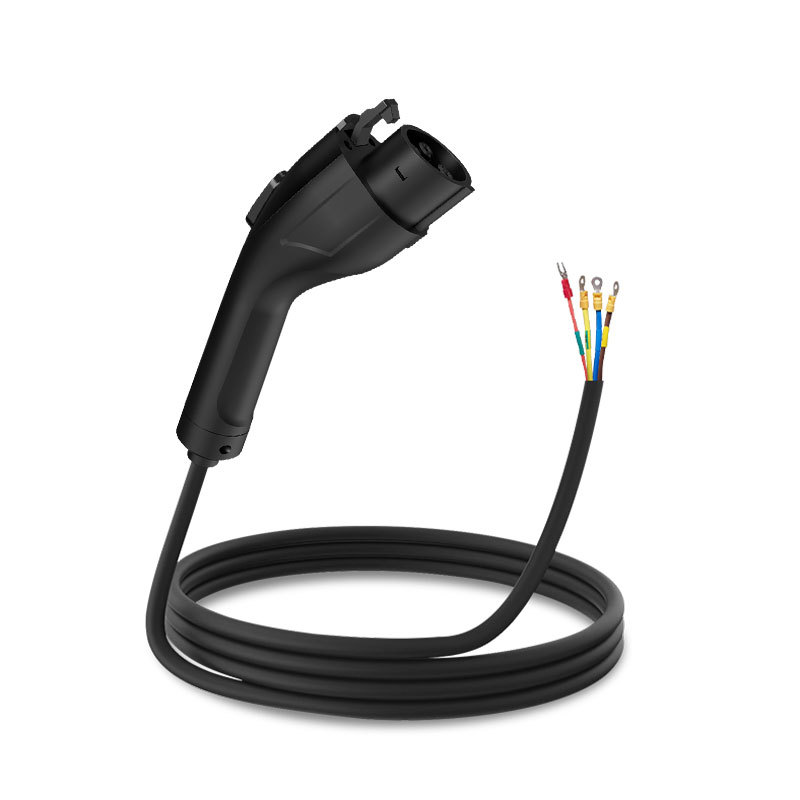

The Hongte J1772 AC charging cable is designed according to US EV charging standards, providing reliable and efficient AC charging solutions for electric vehicles in residential, commercial, and public charging environments.
With silver-plated copper alloy conductive pins and UL94-V0 flame-retardant thermoplastic housing, the cable ensures excellent electrical conductivity, minimized heat generation, and long-term durability. Supporting a wide adjustable current range from 16A to 80A and dual voltage (110V / 240V), the cable meets various EV charging power requirements.
Equipped with IP55 protection and multi-layer intelligent safety systems, the cable ensures stable and safe operation in diverse indoor and outdoor environments.
• J1772 charging interface compatible with American EV charging systems
• Ideal for home, commercial, and public charging stations
• Flexible extension solution for vehicles and EV infrastructure
• Supports 16A – 80A current
• Compatible with 3.5kW and 7kW AC charging systems
• Stable power delivery with low temperature rise
• Silver-plated copper alloy conductive pins
• Low electrical resistance, high efficiency
• Reliable long-term charging performance
• UL94-V0 flame-retardant housing material
• Engineering-grade thermoplastic shell
• Mechanical life exceeding 10,000 insertion cycles
• Plug temperature monitoring
• Over-temperature protection
• Leakage protection
• Overvoltage and overcurrent protection
• Short circuit protection
• Lightning protection
• Undervoltage protection
• Flame-retardant protection
• Charging gun locking and anti-theft support
• IP55 waterproof and dustproof
• Operating temperature from -30°C to 50°C
• Suitable for outdoor and indoor EV charging environments
| Parameter | Specification |
|---|---|
| Charging Power | 3.5kW / 7kW |
| Current Range | 16A – 80A |
| Rated Voltage | 110V AC / 240V AC |
| Operating Frequency | 50Hz ±2Hz |
| Protection Grade | IP55 |
| Flame Retardant Grade | UL94-V0 |
| Operating Temperature | -30°C to 50°C |
| Mechanical Life | >10,000 plug cycles |
| Cooling Method | Natural Air Cooling |
| Working Altitude | <2000m |
