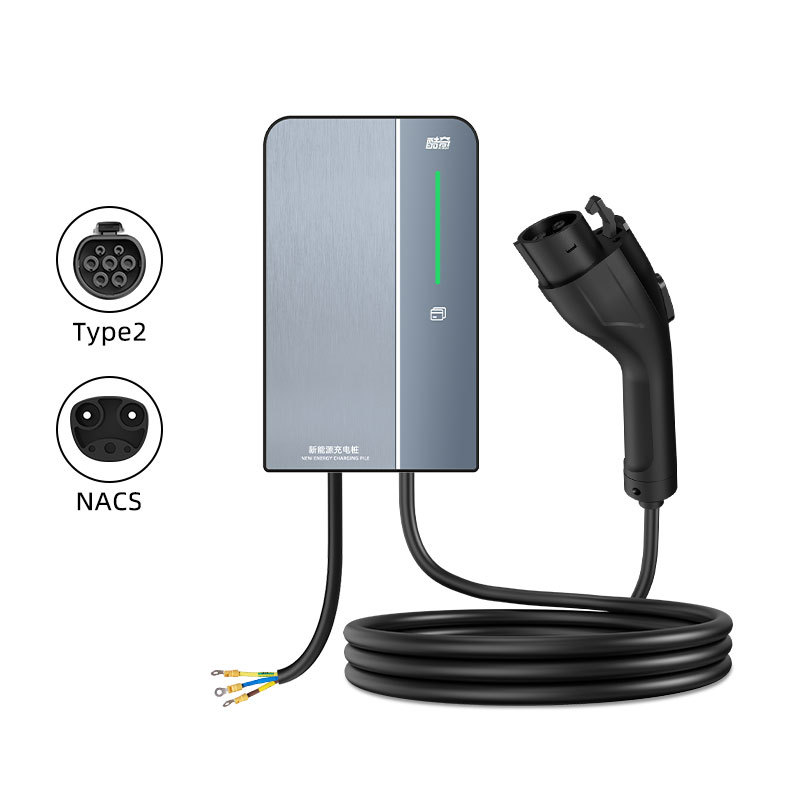

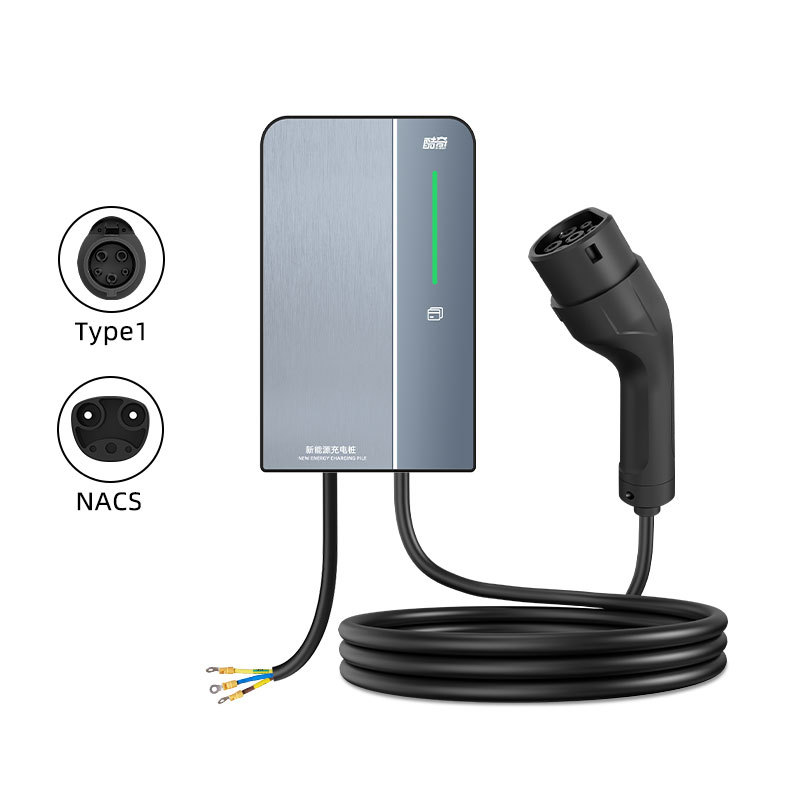

The Hongte KQ04 Mode 3 AC EV Charger is a robust and cost-effective charging solution designed for commercial, residential community, and engineering project applications.
Supporting 7kW / 11kW / 22kW charging power and compatible with AC 220V / 380V, the KQ04 focuses on long-term stability, simplified operation, and enhanced safety.
Instead of a display screen, the charger uses high-visibility indicator lights to clearly show charging status, making it ideal for installations that prioritize durability, low maintenance, and operational reliability.
With APP-based scheduling, vehicle-side reservation, and multiple authentication options—including RFID card and network control—the KQ04 integrates easily into smart charging systems while maintaining a clean and practical hardware design.
Featuring IP66 protection and a comprehensive commercial-grade safety system, the KQ04 is well suited for both indoor and outdoor charging environments.
Charging power options: 7kW / 11kW / 22kW
Mode 3 AC charging, compliant and safe
32A rated current for consistent performance
Clear charging status indication
Reduced component complexity
Lower maintenance cost for long-term projects
Plug & Play charging
RFID swipe card authentication
Mobile APP control
Mini program operation
Internet-based management
APP scheduling & vehicle-side reservation
Plug temperature monitoring and control
Over-temperature protection
Leakage protection
Overvoltage & overcurrent prevention
Short-circuit protection
Undervoltage protection
Lightning protection
Dust-proof and rain-proof design
Flame-retardant materials
Charging gun locking & anti-theft support
IP66 dustproof and waterproof enclosure
Wall-mounted or column installation
Natural air cooling for reliable operation
Stable performance up to 2000 m altitude
| Item | Specification |
|---|---|
| Charging Power | 7kW / 11kW / 22kW |
| Charging Mode | Mode 3 |
| Operating Frequency | 50Hz ±5Hz |
| Charging Voltage | AC 220V / 380V |
| Operating Temperature | -20°C to 50°C |
| Display Type | Indicator lights |
| Scheduled Charging | APP control, vehicle-side reservation |
| Protection Grade | IP66 |
| Rated Current | 32A |
| Charging Methods | Plug & Play, Swipe Card, APP, Applet, Internet |
| Installation Method | Wall-mounted / Column |
| Cooling Method | Natural air cooling |
| Operating Altitude | ≤ 2000 m |
| Input Cable Length | 3–10 meters |
| Safety Protections | Plug temperature control, over-temperature, leakage, overvoltage, overcurrent, short-circuit, undervoltage, lightning protection, dust-proof & rain-proof, flame retardant, gun locking & anti-theft |
