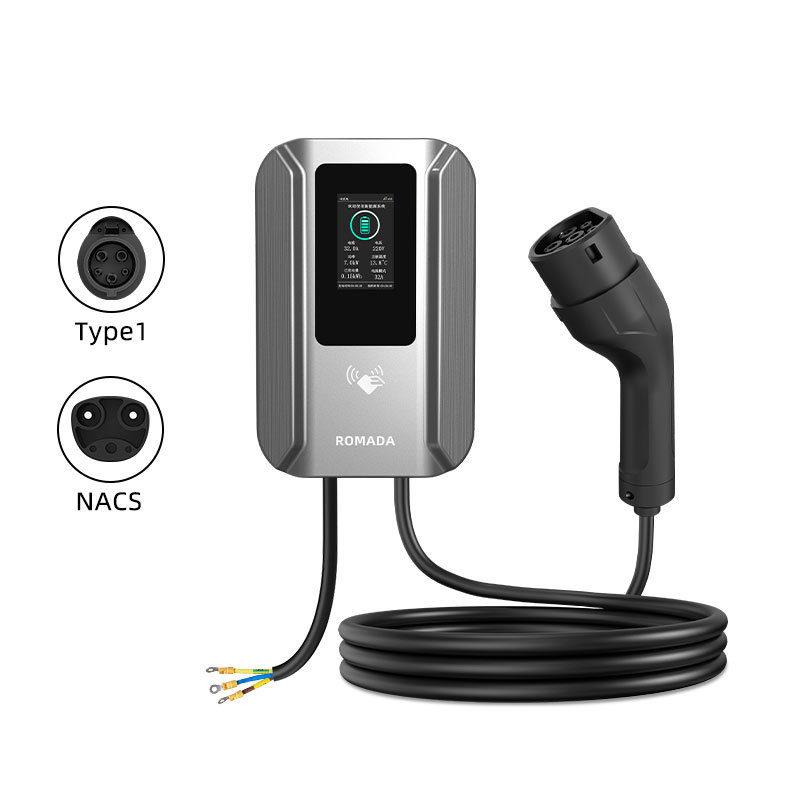

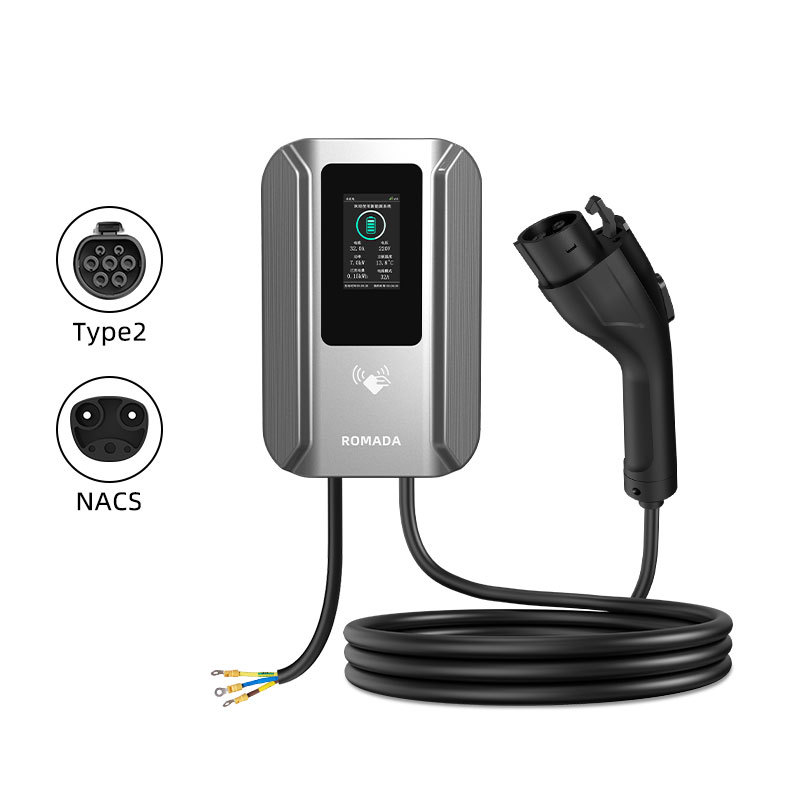

The Hongte KQ06-4.3 Mode 3 Smart AC EV Charger is a premium intelligent charging solution designed for commercial, public infrastructure, and high-end residential charging networks.
Supporting 7kW / 11kW / 22kW charging power and compatible with AC 220V / 380V, the KQ04-4.3 integrates a 4.3-inch smart display interface, allowing users and operators to monitor real-time charging data, system status, and operational information.
With wide adjustable current settings (8A–32A), 1–12 hour scheduled charging, and multiple authentication and control methods including RFID, APP, mini program, and Internet connectivity, this model is ideal for smart charging deployment and network management scenarios.
Designed for demanding outdoor and high-frequency usage environments, the charger features IP66 protection, an enhanced safety architecture, and charging gun locking with anti-theft protection, ensuring secure and reliable long-term operation.
4.3-inch smart display interface
Real-time charging status and system monitoring
User-friendly operation for both users and operators
Charging power: 7kW / 11kW / 22kW
Adjustable current:
8A / 10A / 13A / 16A / 24A / 32A
Plug & Play charging
RFID card authentication
Mobile APP remote control
Mini program operation
Internet network management
1–12 hour scheduled charging
Plug temperature monitoring and control
Over-temperature protection
Leakage protection
Overvoltage & overcurrent protection
Short-circuit protection
Undervoltage protection
Lightning protection
Flame-retardant structural materials
Charging gun locking and anti-theft protection
IP66 dustproof and waterproof design
Natural air cooling for long-term reliability
Wall-mounted or column installation
Stable operation up to 2000m altitude
| Item | Specification |
|---|---|
| Charging Power | 7kW / 11kW / 22kW |
| Charging Mode | Mode 3 |
| Operating Frequency | 50Hz ±5Hz |
| Charging Voltage | AC 220V / 380V |
| Operating Temperature | -30°C to 55°C |
| Display | 4.3-inch Smart Display |
| Scheduled Charging | 1–12 hours |
| Protection Grade | IP66 |
| Current Settings | 8A / 10A / 13A / 16A / 24A / 32A |
| Charging Methods | Plug & Play, Swipe Card, APP, Applet, Internet |
| Installation Method | Wall-mounted / Column |
| Cooling Method | Natural air cooling |
| Operating Altitude | ≤ 2000 m |
| Input Cable Length | 3–10 meters |
| Safety Protections | Plug temperature control, over-temperature, leakage, overvoltage, overcurrent, short-circuit, undervoltage, lightning protection, dust-proof & rain-proof, flame retardant, gun locking & anti-theft |
