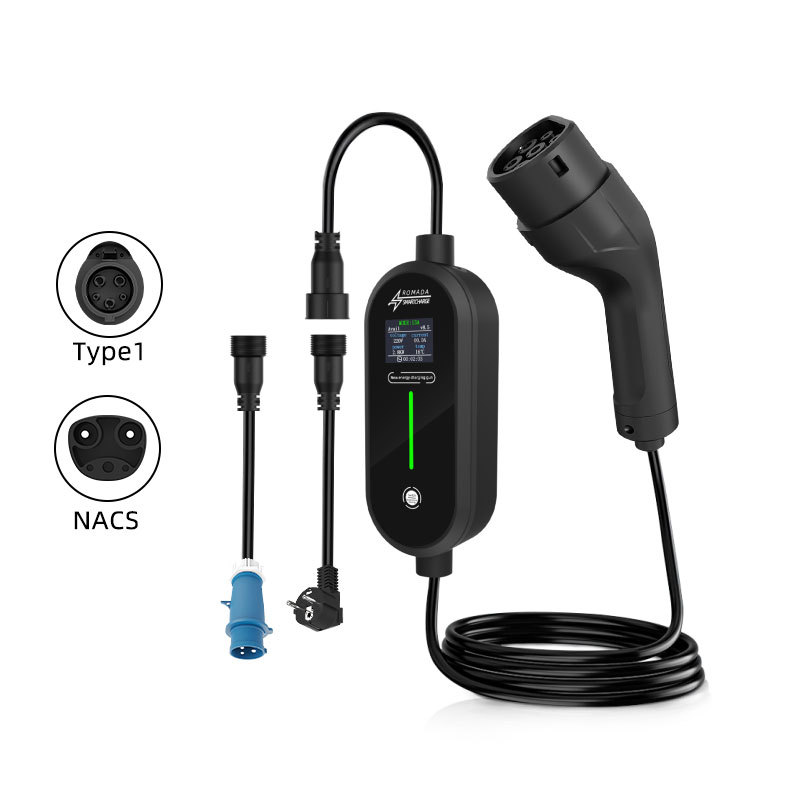

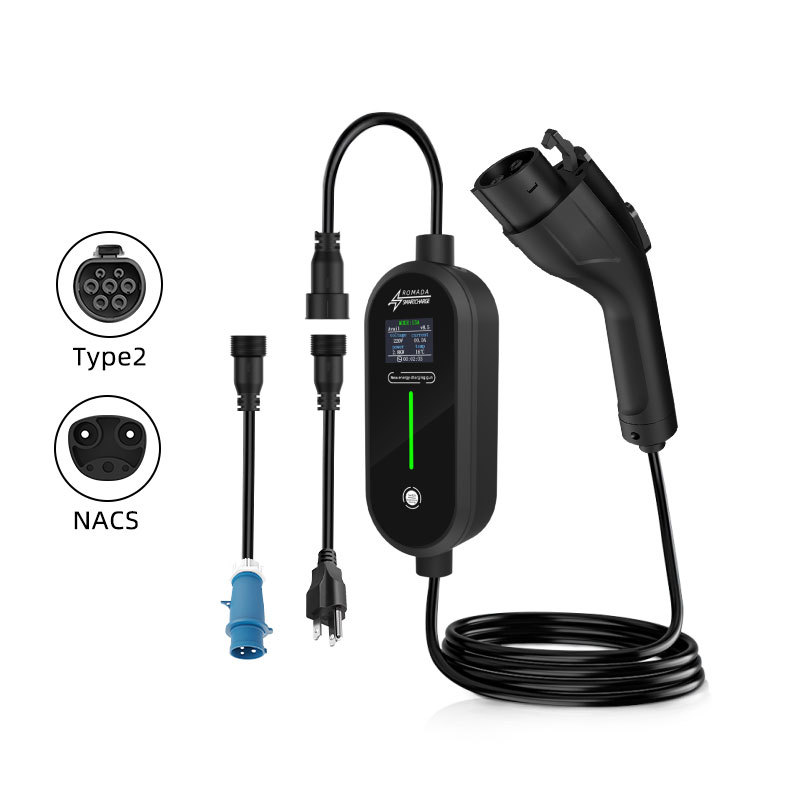

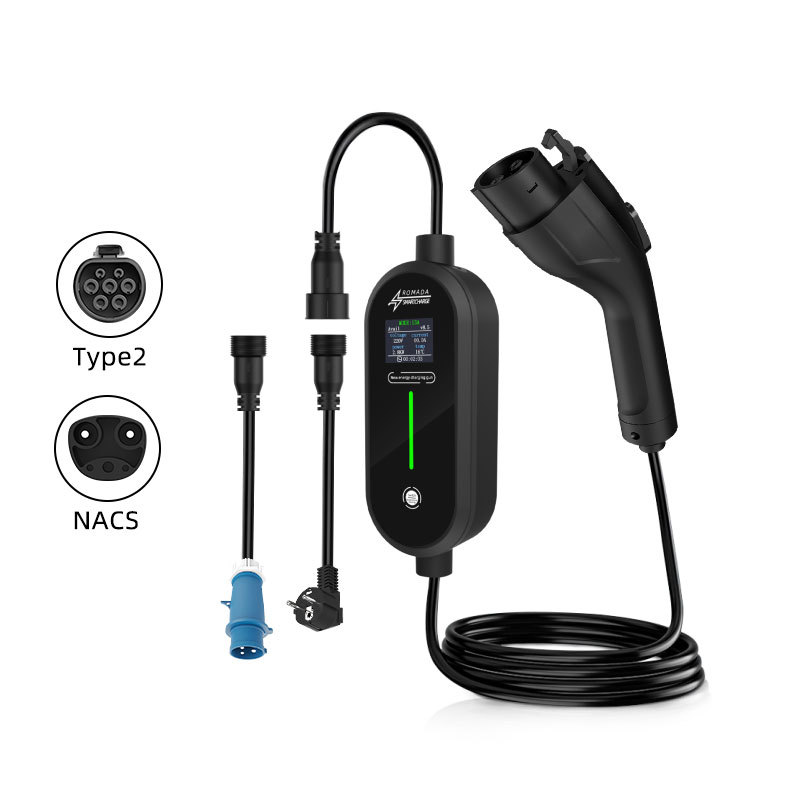

To accommodate different grid capabilities and charging speed requirements, the Hongte Mode 2 charger is available in two distinct power configurations. Both versions feature intelligent current switching technology.
Power Variants
3.5kW Standard Version: Ideal for standard household sockets.
Adjustable Current: 8A / 10A / 13A / 16A
7kW High-Power Version: Designed for industrial sockets or dedicated high-power circuits.
Adjustable Current: 8A / 16A / 24A / 32A
Grid Compatibility
Input Voltage: AC 220V ±15%
Input Frequency: 50Hz ±1Hz
Stability: Maintains consistent output even during minor grid fluctuations.
User Interface & Intelligent Control
The control box is equipped with a high-clarity 1.8-inch LCD display, providing users with immediate visibility of the charging status.
Real-Time Data Monitoring:
Current Charging Voltage (V) & Amperage (A)
Total Power Consumed (kWh)
Charging Duration
Internal Temperature Monitoring
Smart Scheduling Function: Minimize energy costs by utilizing the built-in delay timer. Users can schedule charging sessions in 1 to 12-hour increments, allowing the vehicle to charge during off-peak hours when electricity rates are lower.
Safety & Reliability
Safety is the core of Hongte’s engineering. The device is built to perform in harsh environments and includes a comprehensive 7-point protection system.
Rugged Construction:
Protection Grade: IP66 (Dust-tight and protected against powerful water jets).
Cooling System: Natural Air Cooling structure designed for efficient heat dissipation.
Operating Temperature: Stable performance from -20°C to +55°C.
Integrated Protection Protocols:
CP Signal Abnormality Protection: Ensures correct communication between charger and vehicle BMS.
Overvoltage & Undervoltage Protection: Guards against grid instability.
