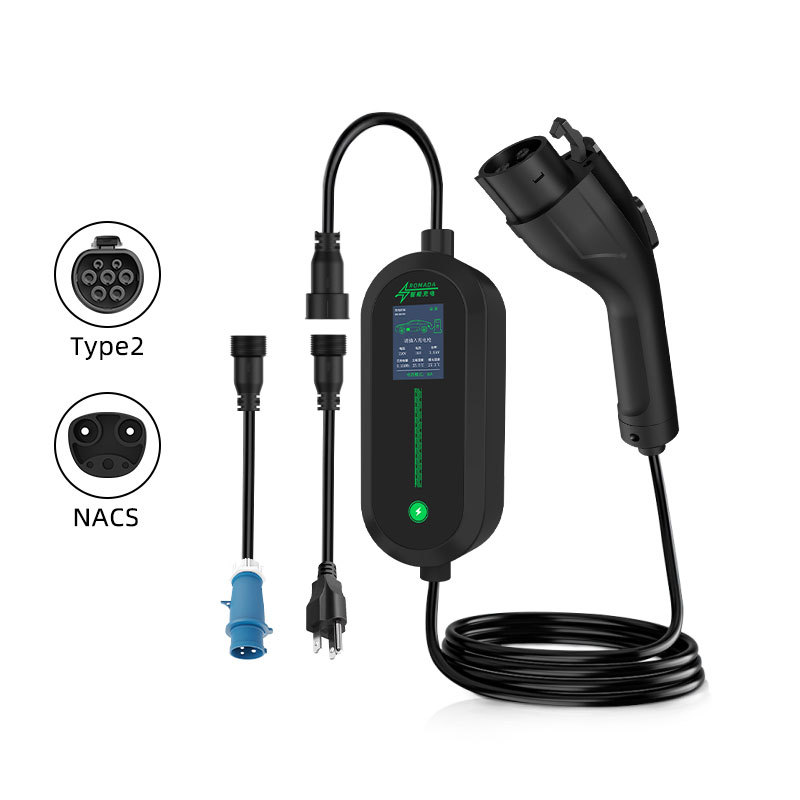

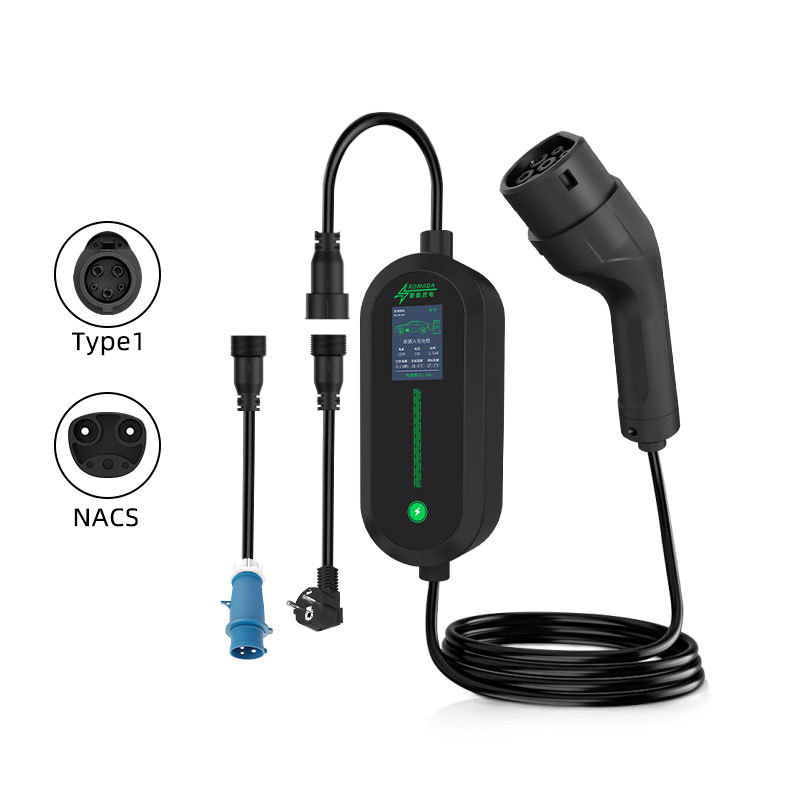

Hongte Mode 2 Portable EV Charger | 3.5kW & 7kW with 2.4” LCD

Product Overview

Freedom to Charge Anywhere.

The Hongte Mode 2 Portable EV Charger is an IC-CPD (In-Cable Control and Protection Device) designed for maximum flexibility and reliability. Engineered for EV owners who require a dependable charging solution beyond fixed wallboxes, this unit transforms any standard AC220V household socket into a safe charging station.

Whether used as a primary home charger or a vehicle-mounted backup for travel, the Hongte Mode 2 offers true plug-and-play convenience without the need for complex electrical installation.

• Mode 2 Standard: Compliant with international safety standards for portable charging.

• Plug-and-Play: Instant charging activation upon connection.

• Universal Compatibility: Works seamlessly with AC220V power grids.

Power & Performance

Flexible Power for Every Grid.

We offer two distinct power configurations to match different electrical capacities and vehicle onboard charger requirements. The system operates on a standard frequency of 50Hz ±1Hz with a voltage tolerance of AC220V ±15%, ensuring stability even in fluctuating grid conditions.

Available Configurations

Note: Adjustable current settings allow users to lower the amperage when sharing a circuit with other appliances, preventing circuit breaker trips.

User Interface & Control

Real-Time Monitoring with Enhanced Visibility.

Unlike basic LED-only chargers, the Hongte Mode 2 features a high-definition 2.4-inch LCD screen. This interface provides the user with transparent, real-time data regarding the charging session, ensuring peace of mind and total control.

• Visual Data: Instantly view Charging Voltage, Charging Current, Real-time Power (kW), Total Energy Delivered (kWh), and Session Duration.

• Smart Scheduling: Features a built-in delay timer allows users to schedule charging from 1 to 12 hours.

  • Benefit: Users can plug in when they arrive home but delay the start time to capitalize on cheaper, off-peak electricity rates overnight.

Safety & Environmental Adaptability

Engineered for Durability.

Safety is the cornerstone of Hongte manufacturing. The unit is encased in a rugged shell with an IP66 protection rating, making it dust-tight and resistant to powerful water jets—suitable for outdoor use in rain or snow.

Operating Environment:

• Temperature: -20°C to 70°C

• Altitude: ≤2000m

• Cooling: Natural air cooling design (no fan noise/failure points)

Built-in Protection Suite:

The intelligent chip constantly monitors the charging status and provides 8-point protection:

1. CP Signal Abnormality Protection

2. Overvoltage Protection

3. Undervoltage Protection

4. Overcurrent Protection

5. Leakage Protection (Type A / Type A+6mA optional)

6. Overtemperature Protection (Auto-throttling or shutoff)

7. Lightning/Surge Protection

8. Grounding Protection

Installation & Cable Options

No Installation Required.

Designed for mobility, this charger requires no mounting or hardwiring. It serves as an immediate charging solution right out of the box.

Cable Specifications:

• Material: High-durability TPE/TPU jacket (Oil, flame, and abrasion resistant).

• Customizable Lengths: Available in 3m, 5m, 10m, 15m, and 20m configurations to suit various parking environments, from compact garages to driveway charging.

Technical Specifications Summary
