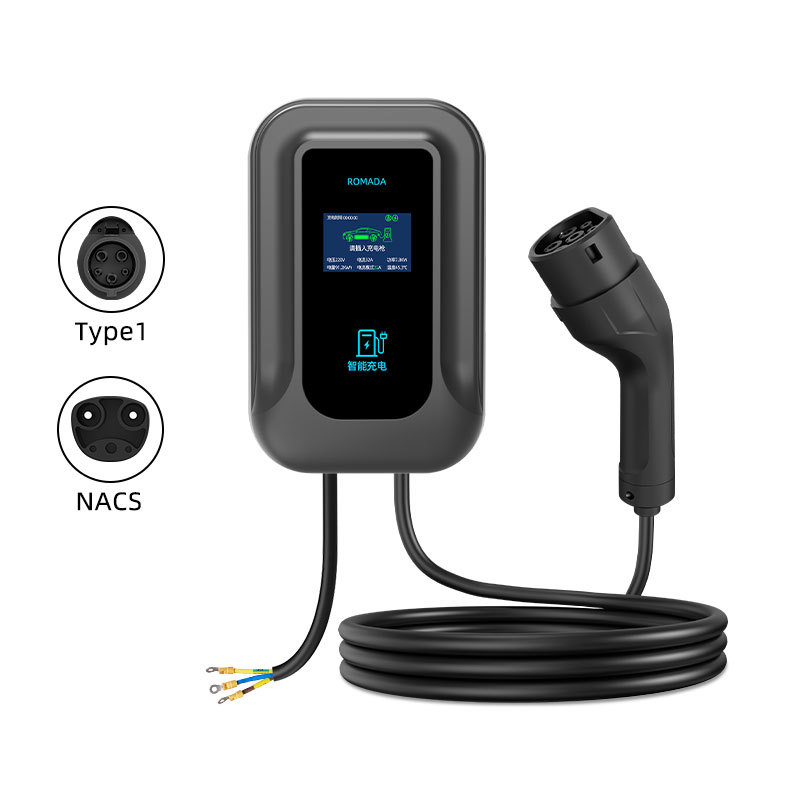

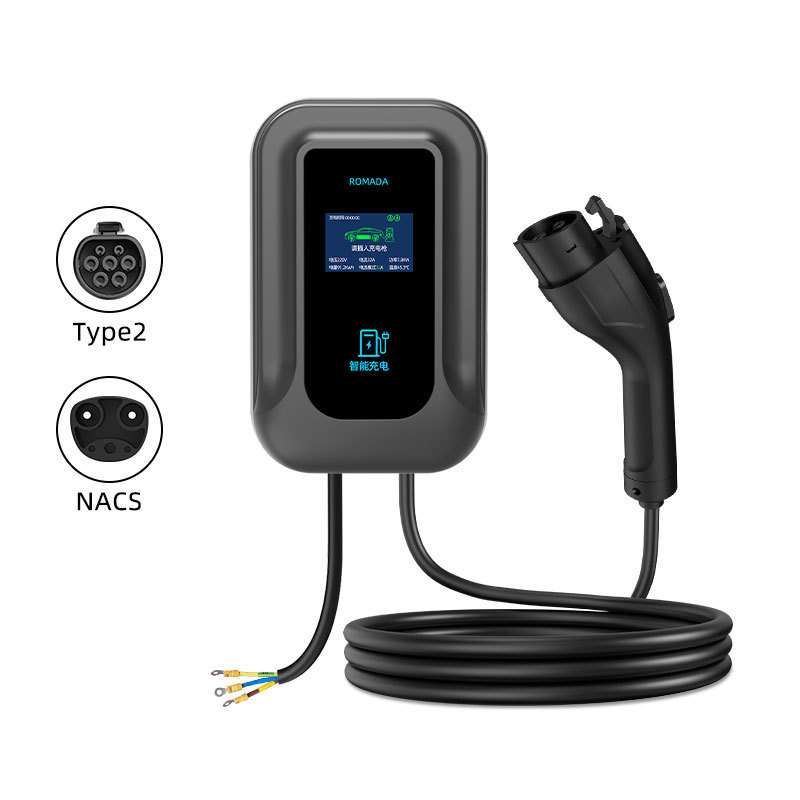

The Hongte Mode 3 AC EV Charger is a high-performance smart charging solution designed for home, commercial, and public applications.
Supporting 7kW / 11kW / 22kW output and compatible with AC 220V / 380V, it delivers flexible, efficient, and reliable charging for a wide range of electric vehicles.
Equipped with a 2.4-inch LCD display, the charger provides real-time charging information and supports scheduled charging from 1–12 hours. Multiple authentication and control methods—including Plug & Play, RFID card, APP, mini program, and Internet connectivity—make it ideal for both private and semi-public charging environments.
With IP66 protection, wide temperature tolerance, and comprehensive electrical safety protections, the Hongte Mode 3 charger ensures stable operation in demanding environments.
Multi-Power Options: 7kW / 11kW / 22kW for different charging needs
Mode 3 Charging Standard: Safe and compliant AC charging
Smart LCD Display: Real-time status, power, and charging data
Flexible Control Methods: Plug & Play, swipe card, APP, applet, Internet
Adjustable Current Settings:
8A / 10A / 13A / 16A
8A / 16A / 24A / 32A
Scheduled Charging: 1–12 hour time setting for off-peak charging
IP66 Protection Grade: Dust-proof and water-resistant for outdoor use
Multiple Installation Options: Wall-mounted or column installation
Comprehensive Safety Protection: Electrical and thermal safeguards built in
| Item | Specification |
|---|---|
| Brand | Hongte |
| Charging Power | 7kW / 11kW / 22kW |
| Charging Mode | Mode 3 |
| Operating Frequency | 50Hz ±5Hz |
| Charging Voltage | AC 220V / 380V |
| Operating Temperature | -30°C to 55°C |
| Display | 2.4-inch LCD Display |
| Scheduled Charging | 1–12 hours |
| Protection Grade | IP66 |
| Current Settings | 8A / 10A / 13A / 16A；8A / 16A / 24A / 32A |
| Charging Methods | Plug & Play, Swipe Card, APP, Applet, Internet |
| Installation Method | Wall-mounted / Column |
| Cooling Method | Natural air cooling |
| Operating Altitude | ≤ 2000 m |
| Input Cable Length | 3–10 meters |
| Safety Protections | CP abnormality, overvoltage, undervoltage, overcurrent, leakage, overtemperature, lightning protection |
Home residential EV charging
Commercial parking lots
Public charging stations
Fleet and workplace charging
Travel backup and emergency charging
