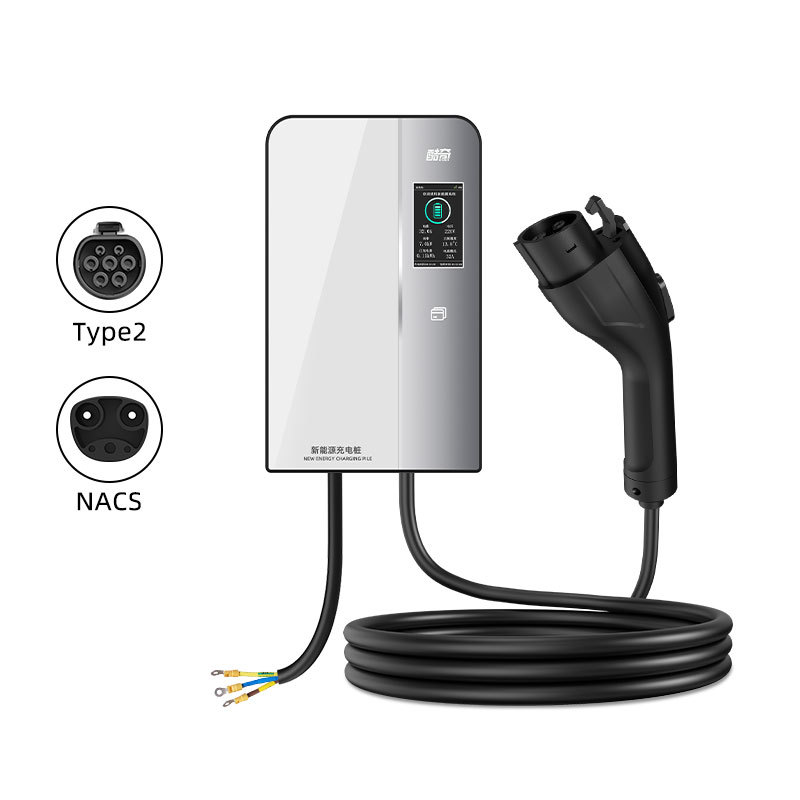

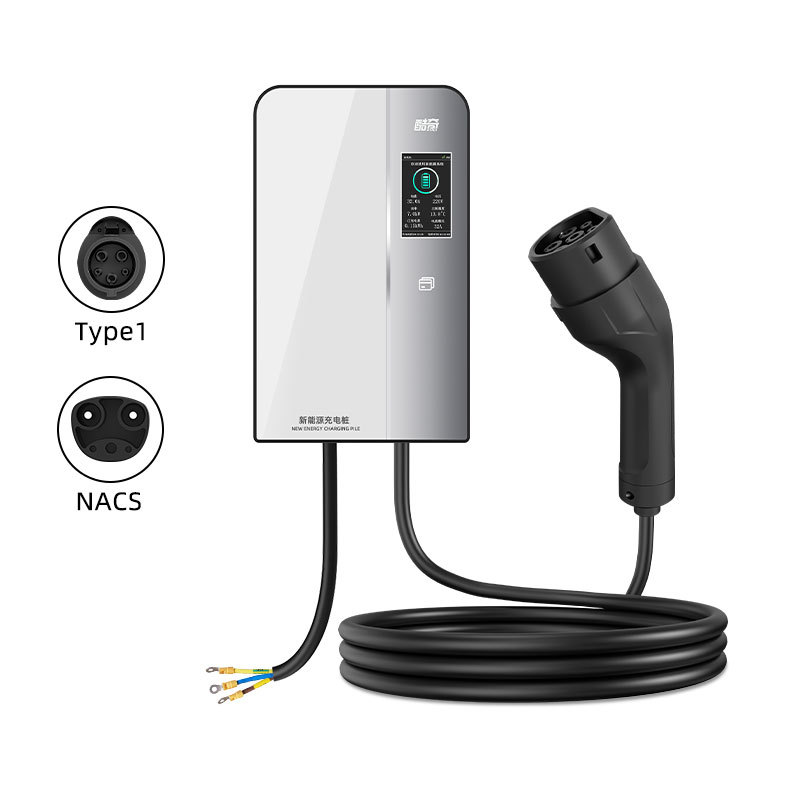

The Hongte Mode 3 Smart AC EV Charger (4.3-inch Commercial Version) is a high-end AC charging solution developed for public, commercial, and multi-scenario deployments.
Supporting 7kW / 11kW / 22kW charging power with AC 220V / 380V input, this charger integrates a 4.3-inch smart display, advanced current control, and comprehensive safety systems to meet the demands of residential communities, commercial buildings, and fleet operations.
With wide adjustable current settings (8A–32A), 1–12 hour scheduled charging, and multiple access methods including RFID card, APP, mini program, and network control, the charger is suitable for both private use and managed charging environments.
Designed for harsh and high-frequency usage conditions, the unit features IP66 protection, enhanced electrical and thermal safety mechanisms, and gun locking with anti-theft support, ensuring long-term reliability and operational security.
4.3-inch high-visibility screen
Real-time charging status and operational data
Intuitive interface for users and operators
Power output options: 7kW / 11kW / 22kW
Adjustable current range:
8A / 10A / 13A / 16A / 24A / 32A
Plug & Play charging
RFID card authentication
Mobile APP control
Mini program operation
Internet-based management
Plug temperature monitoring and control
Over-temperature protection
Leakage protection
Overvoltage & overcurrent prevention
Short-circuit protection
Undervoltage protection
Lightning protection
Flame-retardant materials
Charging gun locking & anti-theft support
IP66 dust-proof and rain-proof design
Natural air cooling for low maintenance
Wall-mounted or column installation
Stable operation in extreme environments
| Item | Specification |
|---|---|
| Brand | Hongte |
| Charging Power | 7kW / 11kW / 22kW |
| Charging Mode | Mode 3 |
| Operating Frequency | 50Hz ±5Hz |
| Charging Voltage | AC 220V / 380V |
| Operating Temperature | -30°C to 55°C |
| Display | 4.3-inch smart display |
| Scheduled Charging | 1–12 hours |
| Protection Grade | IP66 |
| Current Settings | 8A / 10A / 13A / 16A / 24A / 32A |
| Charging Methods | Plug & Play, Swipe Card, APP, Applet, Internet |
| Installation Method | Wall-mounted / Column |
| Cooling Method | Natural air cooling |
| Operating Altitude | ≤ 2000 m |
| Input Cable Length | 3–10 meters |
| Safety Protections | Plug temperature control, over-temperature, leakage, overvoltage, overcurrent, short-circuit, undervoltage, lightning protection, dust-proof & rain-proof, flame retardant, gun locking & anti-theft |
